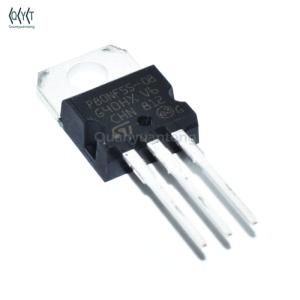

STP80NF55-08 P80NF55-08 MOSFET N-Channel 55V 80A (Tc) 300W (Tc) Through Hole TO-220 Chinese

Product Categories

Shenzhen Quanyuantong Electronics Co., Ltd.

Contact Now

Name: STP80NF5508 P80NF5508 MOSFET NChannel 55V 80A Tc 300W Tc Through Hole TO220 Chinese
Brand: Original
Price: 0.21 USD

D/C : Newest

Package : TO220, TO220

Model Number : STP80NF55-08

Type : MOSFET

Brand Name : Original

Place of Origin : US

P/N : STP80NF55-08

Lead Free Status : RoHS Compliant

Packaging : Reel Tray Tube

Selling Units : Single item

Single package size : 1X1X1 cm

Single gross weight : 0.002 kg

Package Type : Tube&Reel&Tray With Standard Package

MOQ : 10

Price : $0.21

Packaging Details : Box/Reel/Tube

Delivery Time : 1-7 days

Payment Terms : T/T, Western Union, Paypal,Alibaba trade order

Supply Ability : 859000PCS/Day

Contact Now

Product Description

Product Detail

Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	55V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	112nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3740pF @ 15V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220
Package / Case	TO-220-3
Base Part Number	STP80N
